Eco-Nest™ – Double Chamber (Class I)

The kits includes all equipment required to implement our patented treatment process. You provide your locally available tank.

$3,300.00$9,490.00

Clear



Orders placed before noon are shipped UPS ground the same business day.

All orders are processed on a secure server.

Untitled 1 1 - Eco-Nest™ - Double Chamber (Class I)

Description

Sample Installation 1024x683 1 - Eco-Nest™ - Double Chamber (Class I)

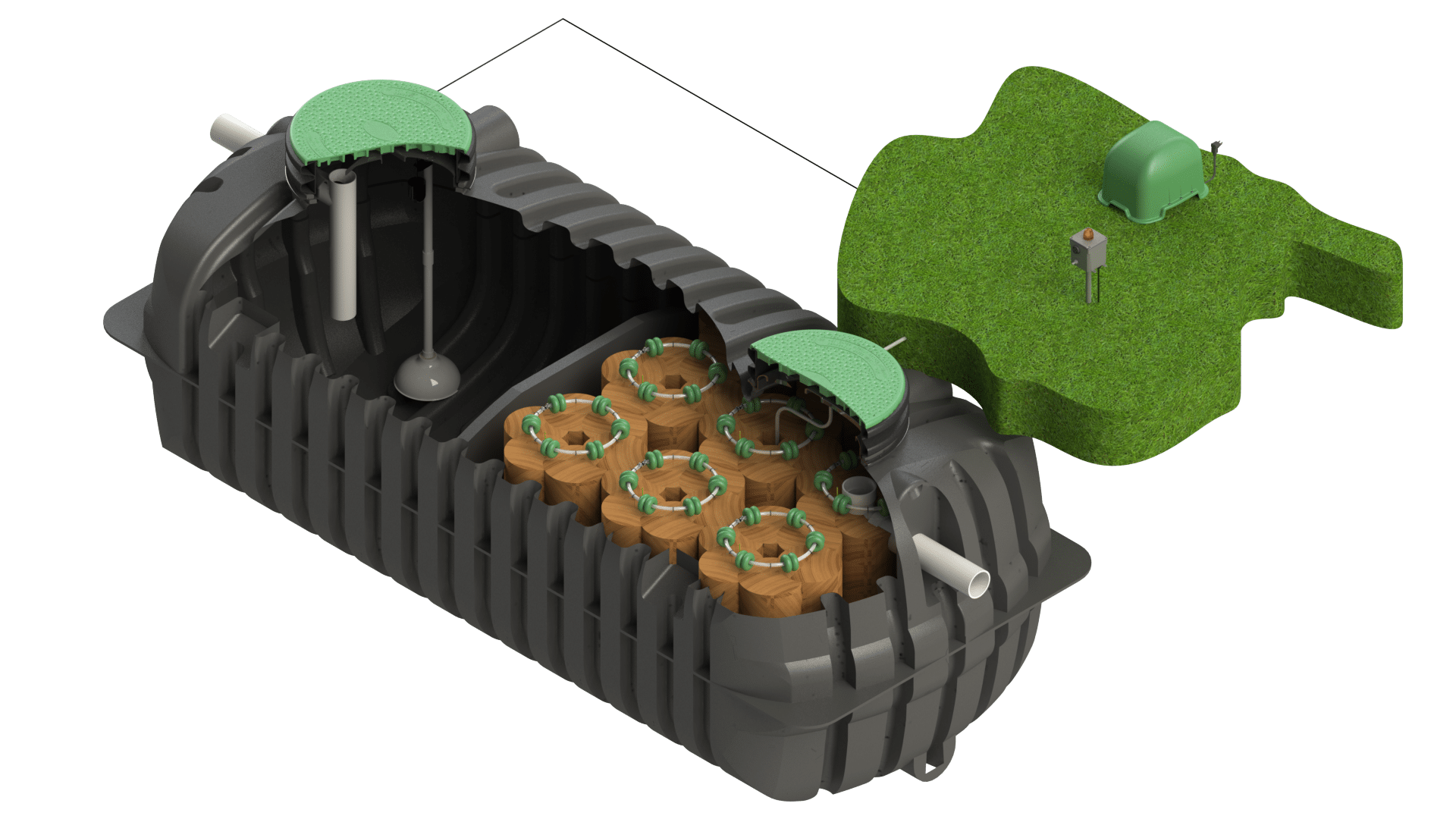

Eco-Nest™for Double Chamber Tanks

Effluent Quality 26 Week Average (mg/l):

CBOD5 – 14.22 TSS – 6.4

26 Week STD DEV:

CBOD5 – 6.93 TSS – 3.37

Features:

  • Free Custom Configuration of Media Clusters
  • Unlimited Technical Support
  • Fully Illustrated Installation Guide
  • UL Listed Corded Outdoor Appliance
  • Battery Operated High Water & Low Air Pressure Alarm
  • AS-R7 Riser Kits Included (Upgradable up to 50″ tall on request)



Please Note: Eco-Nest™ NSF ANSI 40 Products are only available through trained and authorized Aero-Stream providers per the requirements of the NSF ANSI 40 standard. If you are interested in becoming an authorized reseller please call us at (877) 254-7093 or email us at “Contact Us”.



Additional information

Tank Configuration

Double Chamber

NSF Classification

NSF ANSI 40 Class I

Liquid Level

Tank Liquid levels from 38″ to 72″

Power Requirements

115VAC – 15 AMP GROUNDED POWER OUTLET

Power Cord Length

5ft Long Power Cord

Air Line Length

20Ft

Sound Rating

Quiet 40 dB Sound Output at 5 Meters

US Patent

U.S. patent number 7,264,727 & other patents pending

Manufacturer Warranty

24 Months

Maintenance Contract

NSF International requires installers to provide service inspections once every (six)-6 months over the first two-(2) years of operation. Electrical, mechanical, and other applicable components should be inspected, adjusted, and serviced as required.
