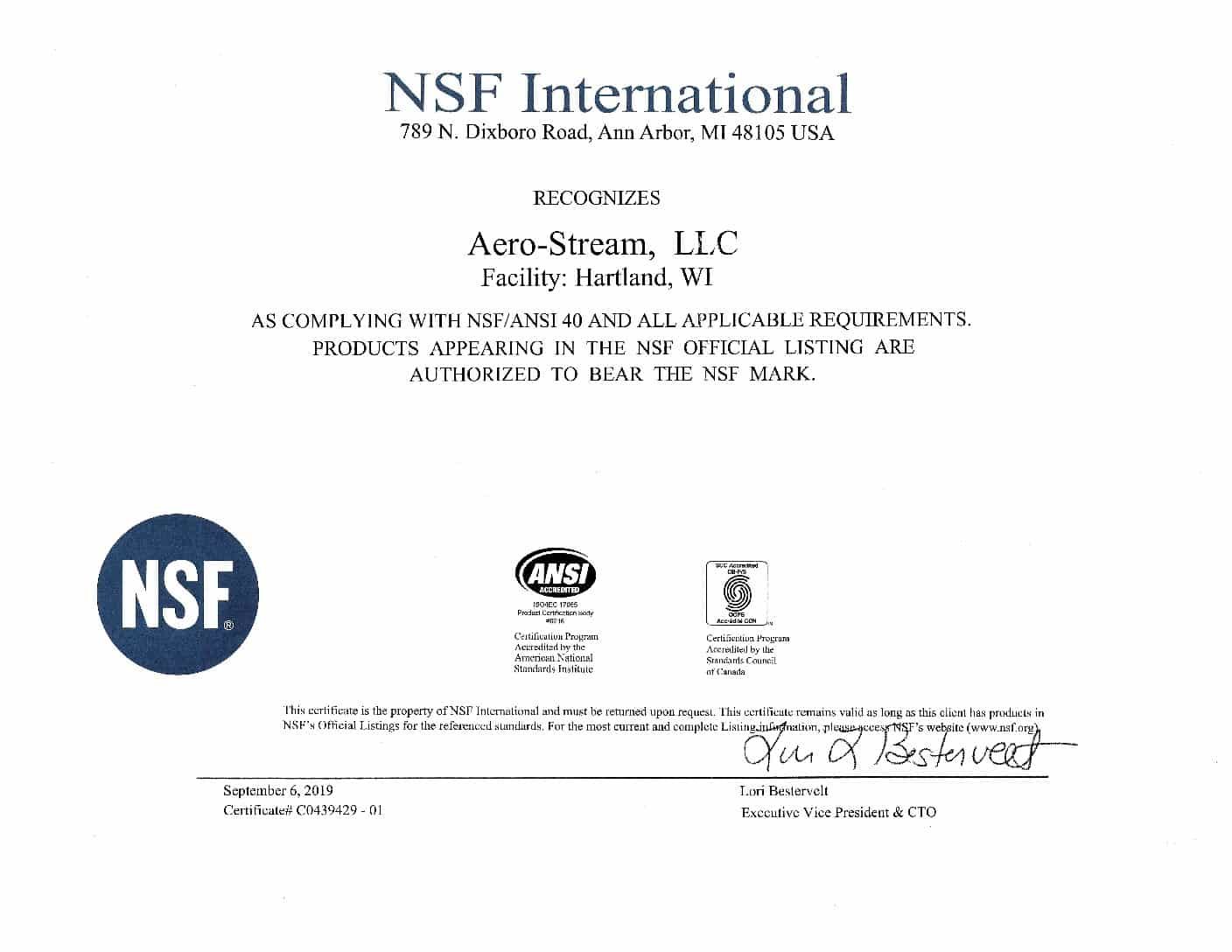

NSF/ANSI 40 is the World Standard for Residential Wastewater Treatment
Engineered for NSF/ANSI 40 Performance
NSF/ANSI 40 requires exceptional performance. Eco-Nest™ systems feature our patented Bio-Brush®, delivering measurable results where it matters. The water leaving the Eco-Nest™ septic tank is 30% cleaner compared to aeration alone.
A More Stable, More Effective Treatment Process
Aero-Stream Eco-Nest™ aerobic treatment system uses a fundamentally different approach than traditional aerobic units. Our process provides stable, consistent performance.

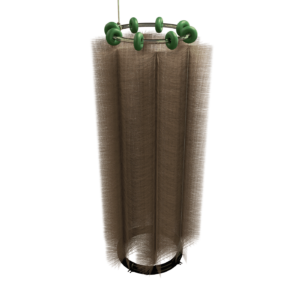

Instead of relying on suspended growth bacteria (like inverted Imhoff cone designs), Eco-Nest™ uses attached growth bacteria through the patented Bio-Brush®:
- Massive surface area supports dense bacterial colonization
- Bacteria remain fixed to the media, continuously treating wastewater
- Greater resistance to shock loads (organic and hydraulic)
Patents: US 10,995,026, US 7,718,067 Canada 2,609,005 and other patents pending
Engineered to Perform Through Failure
After completion of the 26-week certification testing the Eco-Nest™ AS500-1 (single chamber class II) was operated per the NSF/ANSI 40 testing protocol for another 29 weeks with the air compressor turned off to simulate an extended mechanical malfunction. The system produced effluent average quality of 46 mg/l CBOD5 (68% removal efficiency) and 18 mg/l TSS (88% removal efficiency).
Eco-Nest™ systems include all equipment required to implement our patented treatment process. You provide your locally available tank.
Designed for flexibility in the field, Eco-Nest™ systems integrate with locally available precast or poly tanks, reducing installation complexity and overall cost. In some cases, existing tanks can be utilized. By leveraging local components, Eco-Nest™ systems ship UPS Ground, providing contractors with a cost-effective, easy-to-source solution that performs reliably in real-world conditions. Eco-Nest™ is available in 450–1500 GPD ratings (450, 500, 600, 750, 1000, and 1500 GPD), and can be configured in single, double, or triple chamber layouts to meet site and code requirements.
- Supports Tank Liquid Levels from 38″ to 72″
- Quiet 40 dB Sound Output at 5 Meters
- Free & Ulimited Technical Support
- Fully Illustrated Installation Guide
- Two Year Equipment Warranty
Eco-Nest™ Single Chamber (Class II)
Effluent Quality 26 Week Average (mg/l):
CBOD5 – 18.39 TSS – 9.47
26 Week STD DEV:
CBOD5 – 9.87 TSS – 4.17
Contact us for Pricing

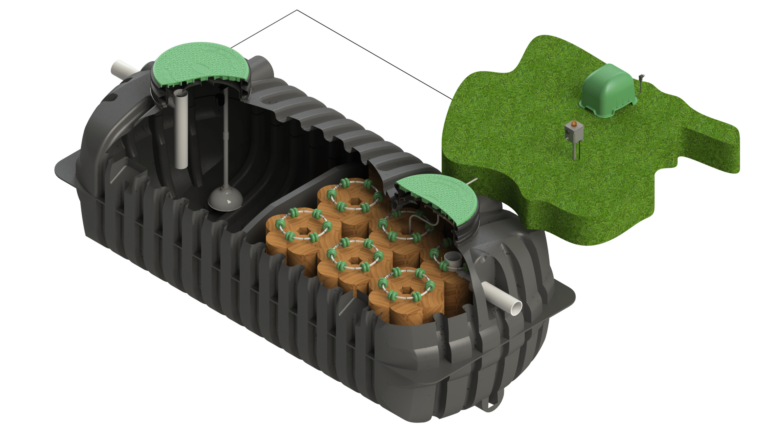

Eco-Nest™ Double Chamber (Class I)
Effluent Quality 26 Week Average (mg/l):
CBOD5 – 14.22 TSS – 6.4
26 Week STD DEV:
CBOD5 – 6.93 TSS – 3.37
Contact us for Pricing
Eco-Nest™ Triple Chamber (Class I)
Effluent Quality 26 Week Average (mg/l):
CBOD5 – 11.39 TSS – 5.00
26 Week STD DEV:
CBOD5 – 6.35 TSS – 2.80
Contact us for Pricing
Eco-Nest™ NSF/ANSI 40 products are only available through trained and authorized Aero-Stream providers per the requirements of the NSF/ANSI 40 standard. If you are interested in becoming an authorized reseller please contact us.
- UL Listed Outdoor Compressor (115VAC – 15 AMP Grounded Power Outlet Req’d)
- Bio-Brush Media (Free Custom Configurations Available)
- Air Diffuser(s) with 20′ of Air Line
- Battery Operated Aero-Alert™ High Water & Low Pressure Alarm
- AS-R7 Septic Tank Riser Kit (Additional heights available upon request)
- Verify required effluent quality standards per local code
- Determine design flow rate (gallons per day)
- Consult Aero-Stream Technical Support to select the optimal locally available tank size and configuration
- Aero-Stream Engineering reviews specifications and configures system components accordingly
More chambers result in cleaner effluent, and selecting the right model depends on several key factors, including the absorption component design, soil conditions, site constraints and accessibility, and expected water usage habits. Our technical support staff is here to support you in choosing the best solution for your next project.
